Aranet Pro - Base station configuration (Customers)

Aranet Pro - Base station configuration (Customers)

Setting up Base Station:


Step 1. Open the box.
Step 2. Take all items out of the box

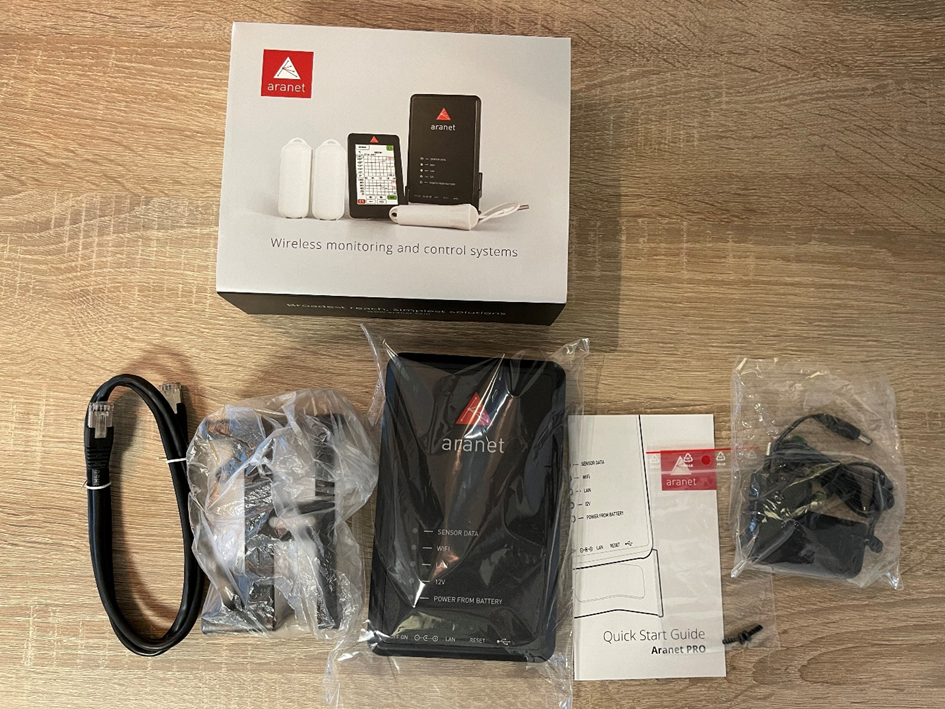

Box contents:

1. Ethernet cable

2. Aranet mount

3. Aranet Pro Base Station

4. Adapter

5. 2 screws

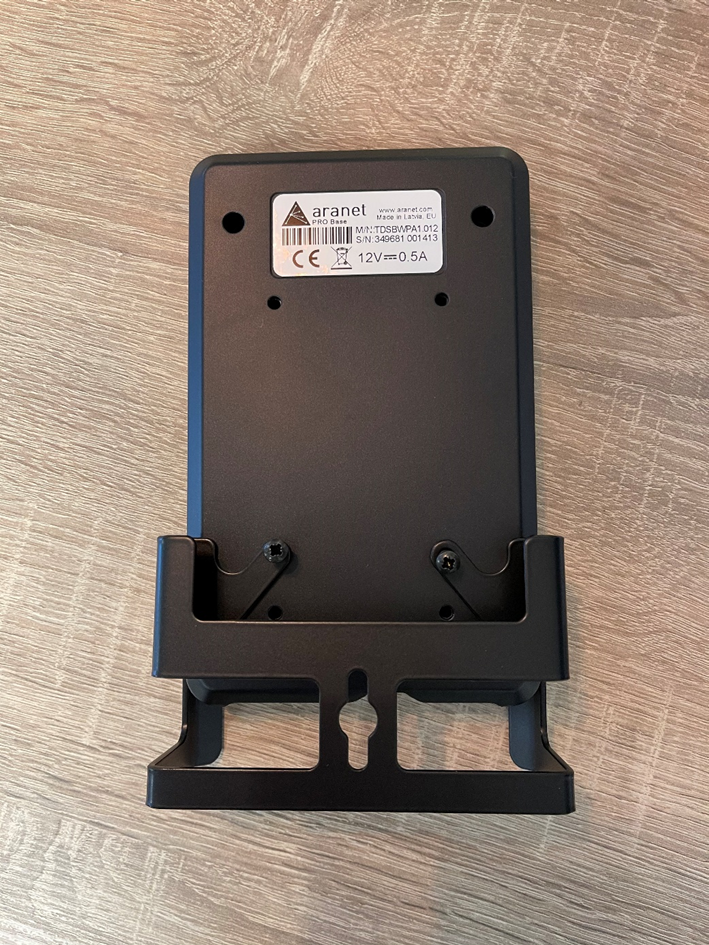

Step 3. Attach the base station to the mount if desired. Place the base station at the desired position and secure it with the screws.

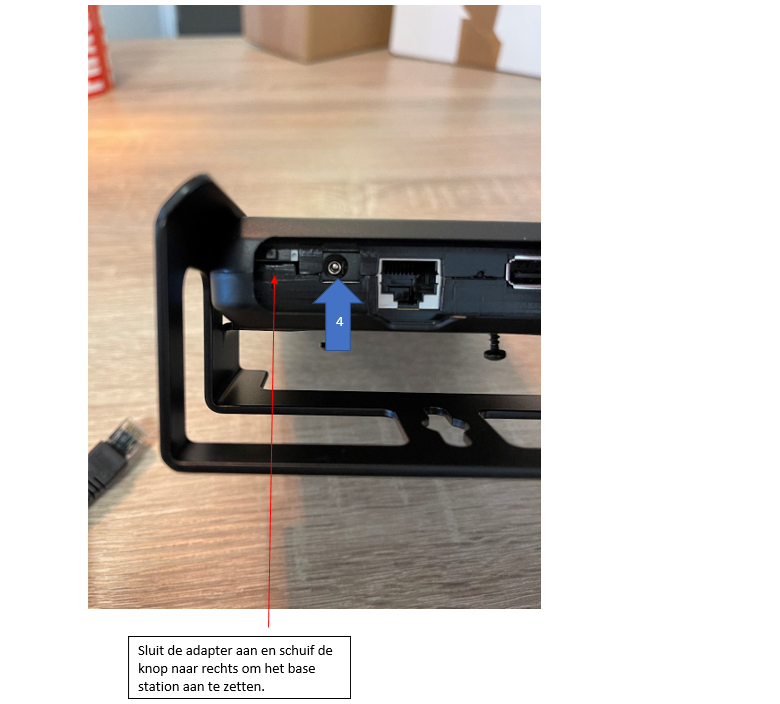

Step 4. Plug in the adapter and turn on the base station.

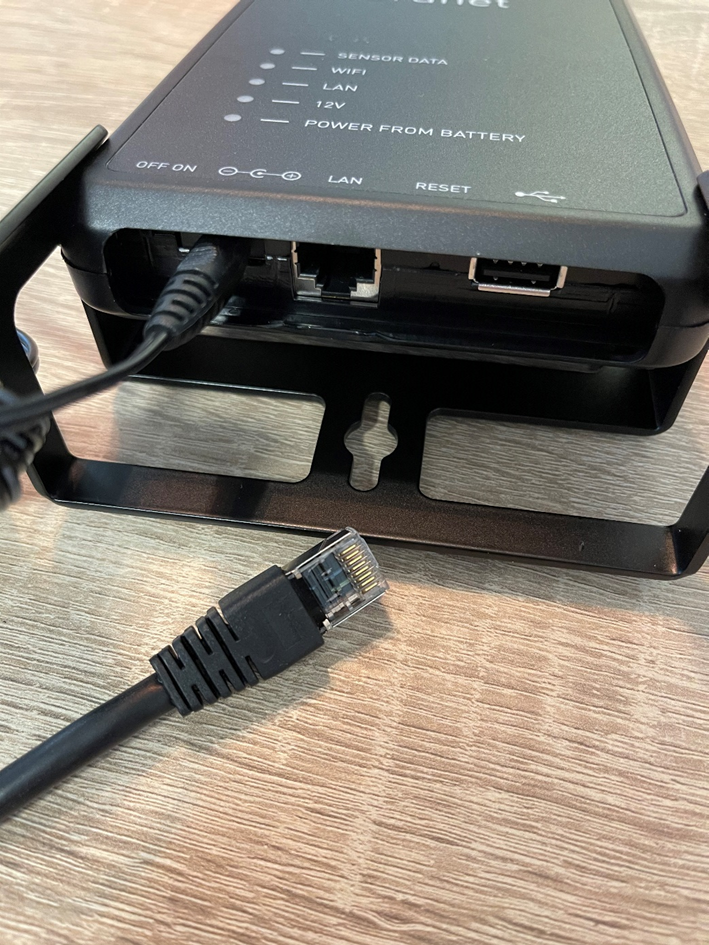

Step 5. Connect the Ethernet cable to the base station. Then connect the cable to a network. You can do this by connecting to a router, for example. After a successful connection the LAN LED will start blinking orange.

The sensors are already connected. As soon as the base station has an active connection the sensors will come online.
