Aranet Pro - Base station & sensors setup (Dealers)
Step 1. Open the box of the Aranet Pro Base Station.

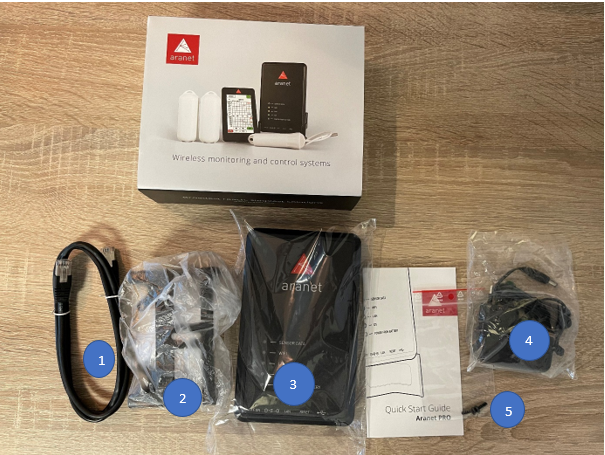

Step 2. Take all the products out of the box:
Contents:
1. Ethernet cable
2. Aranet footrest
3. Aranet Pro Base Station
4. Adapter
5. 2 Screws

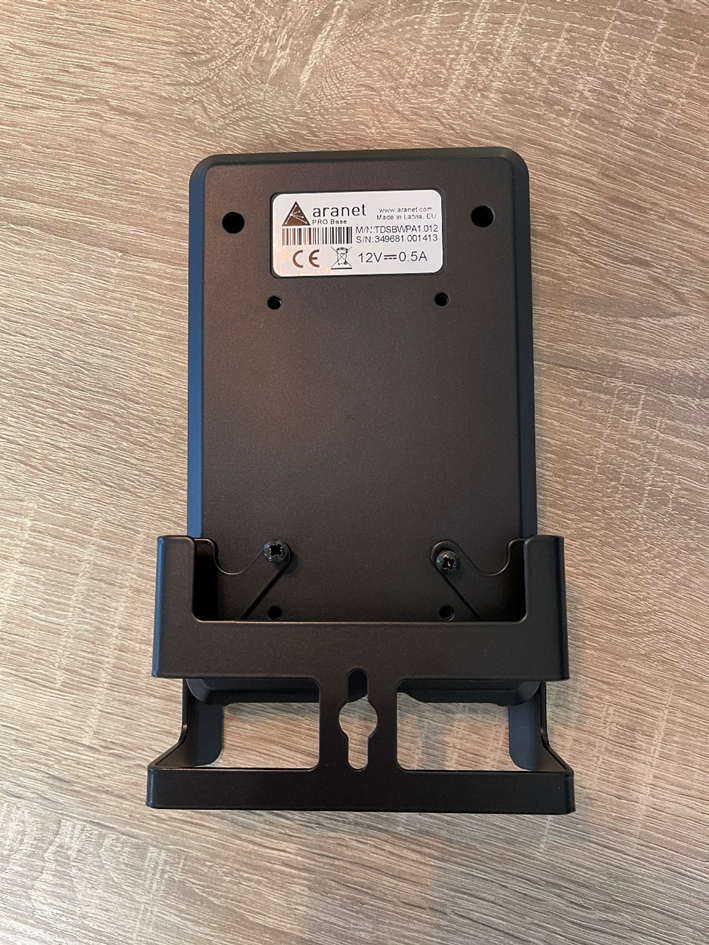

Step 3. Remove the Aranet Pro base station, footrest, and screws from the package. If desired, secure the Aranet base station to the footrest. Select one of the 3 options and attach the Aranet base station to the footrest by tightening the screws.

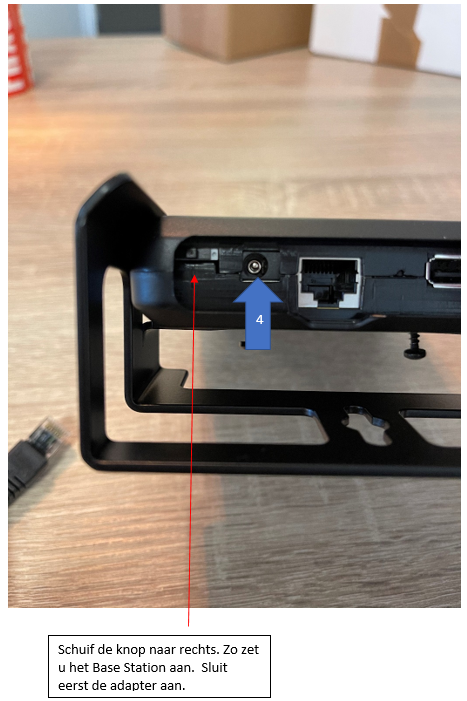

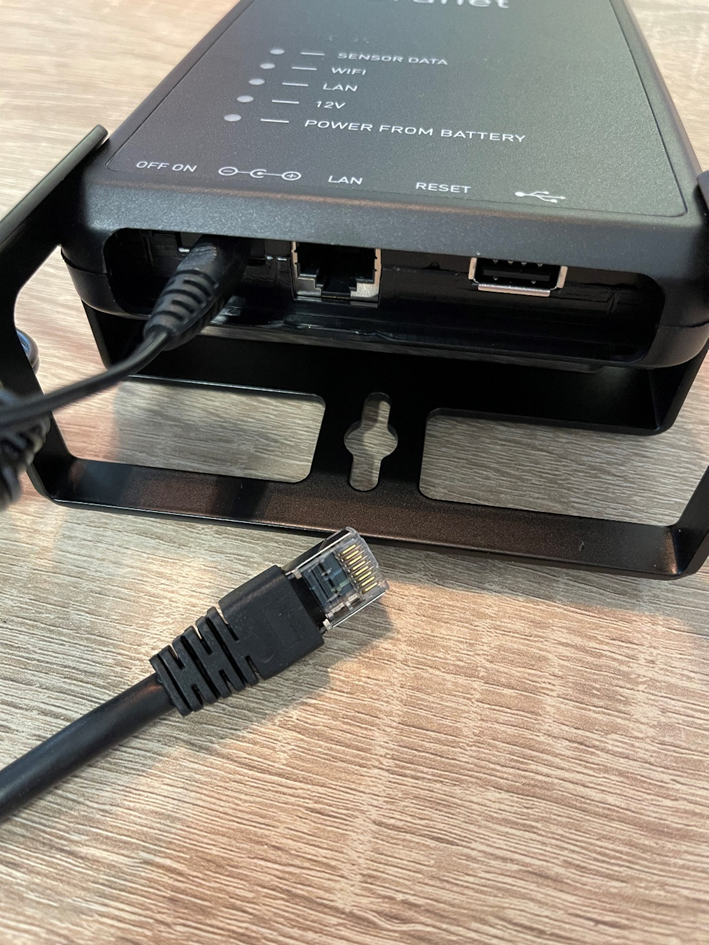

Step 4. Connect the adapter to the Aranet Base Station and connect it to the power outlet. Then slide the button designated with the red arrow to the right. This is how you turn on the base station.
For the following steps you will need a laptop/phone/tablet:

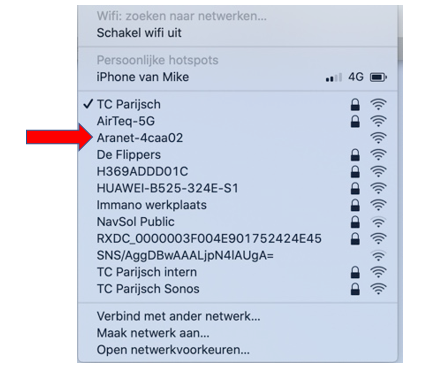

Step 2. Connect to the Aranet Base station in the wifi.
When you are connected to the Aranet Base Station open your browser and go to: http://192.168.206.100
Login with the default credentials:
username: root
Password: changeme

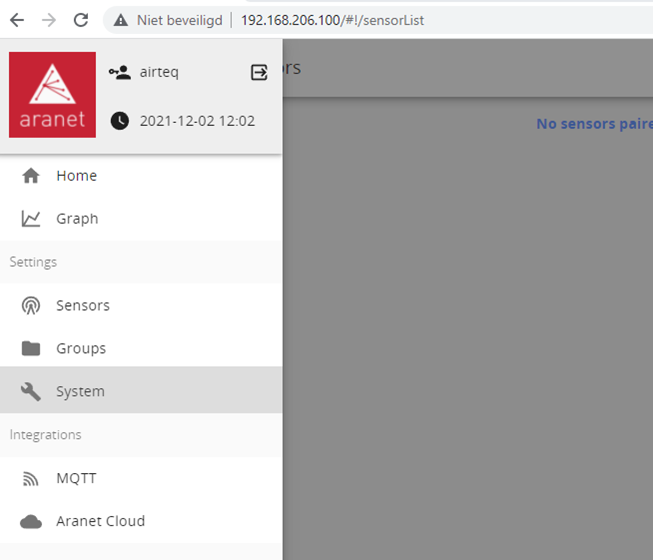

Step 3. When you are logged into the Aranet Base Station. Then click on the 3 dashes at the top left of the screen. Click on System.

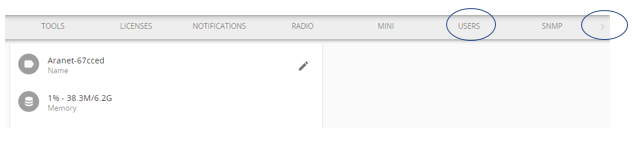

Step 4. Go to 'Users' using the selection at the top of the screen. you can use the arrow to load more options.
Then click on add user. There is now a new user in the list.
Select it and change the data to the desired login name and password. Delete the default login if necessary.

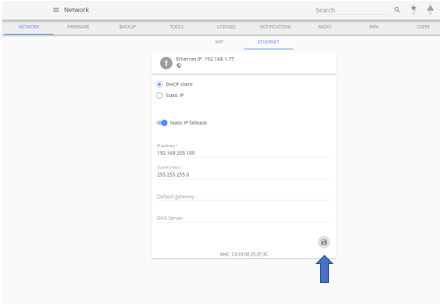

Step 5. Go to the Network page (at the top of the screen) and click on Ethernet.
Select the DHCP client option. then click the save symbol.
The Aranet Pro Base Station is now connected to the Internet.
To check this you can look at the symbol under the word Ethernet. (This can take up to 1 minute to change).
= Connected to the Internet.
= Not connected to the Internet.

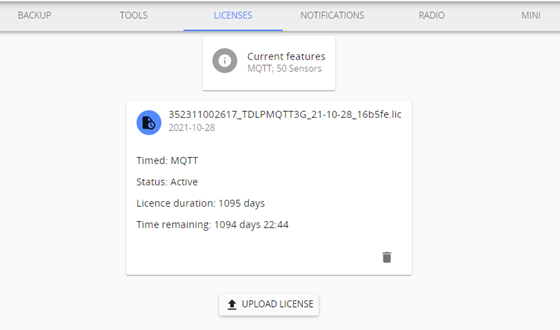

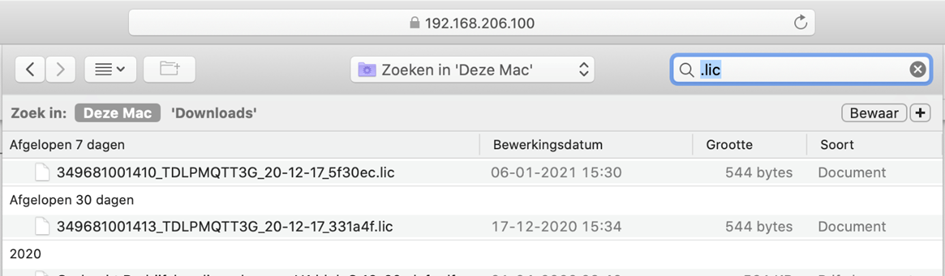

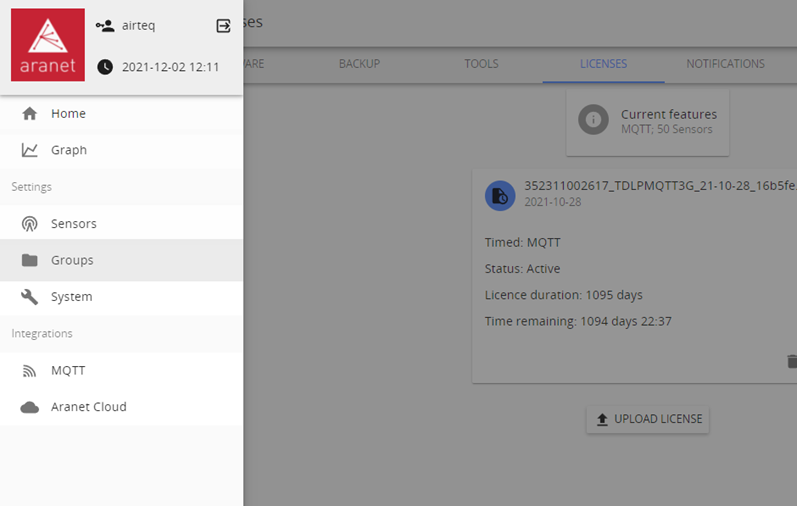

Step 3. Upload the license. You can either purchase the license yourself at Aranet, or you can request it from Airteq. This does incur additional costs. The license is required for the MQTT function to work. The license is saved as a .lic file so you can easily find it.

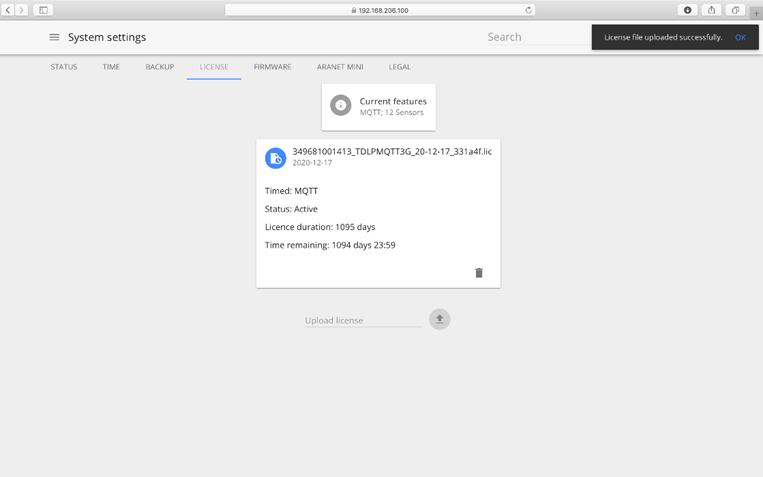

Step 4. When the license is successfully uploaded you will see this screen. With the message "License file uploaded successfully". This license is needed to set up an MQTT service.

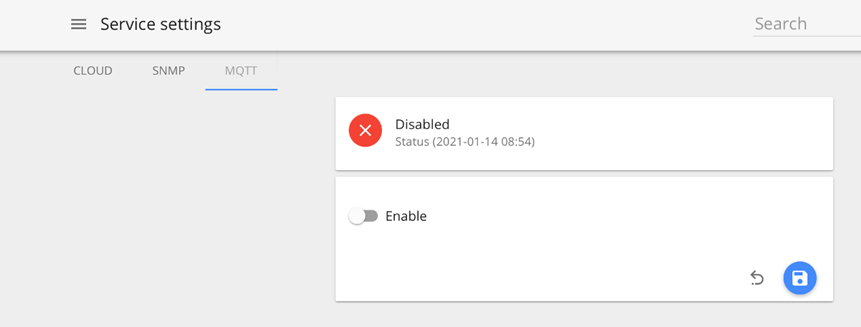

Step 5. Again click on the 3 dashes at the top left of the screen. Then click on MQTT.
Step 6. Click on Enable.
Step 7. Fill in the following information:
Pay attention to capital letters, periods etc! It often happens that the root topic is automatically changed to a capital letter by your computer. Make sure that everything is exactly the same!
Host address: aircheqonline.nl
Port: 8883
Protocol version: MQTT V3.1.1
Authentication:
Username: aranetuser
Password: afjBb2gorOG5T5vsZ46z
Encryption TLSv1.2
Host CA: see CA Certificate
QoS level: 1
Root topic: aranet
Sensor meas. format: JSON

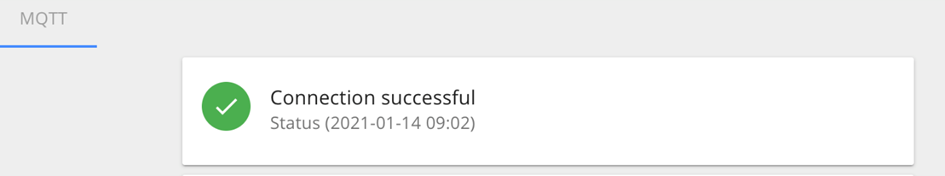

__________________________________________Step 8. When all data has been entered click on the blue save button. When everything is entered correctly and everything is working you will see the following screen:
Step 2. Create a new location on Aircheqonline or use a current location.
Step 3. Fill in the name space + name module + serial no. main unit
